SIC-1100(A)
Product Features
Control Pad: 7-inch LCD touch (capacitive touch selectable)
Projector RS-232 control
Electric screen and elevation control (Up / Stop / Down)
Extended control terminal: RS-232, RS-485, Relay
Extended control module power output: DC5V
Built-in USB, LAN hub
Built-in EXT.S/W capable of interlocking with fire safety standards EM signals
Built-in DSP (Digital Signal Processor) Chip
Parametric Equalizer support: EQ can be adjusted individually for Mic 1 and 2 audio
Phantom Power 48V On/Off can be set
Built-in digital amplifier: 60W, 8Ω (Applied model-SIC-1100A)
Basic card for computer power control
Interlocking with central integrated control program (Smart Manager) is possible (Option)
control pad
Control Pad (Basic Optional)
* The control pad can be selected as a tabletop type or a flush type.
-2(7%EC%9D%B8%EC%B9%98).png)
< Tabletop type >
< Wall Mounting >

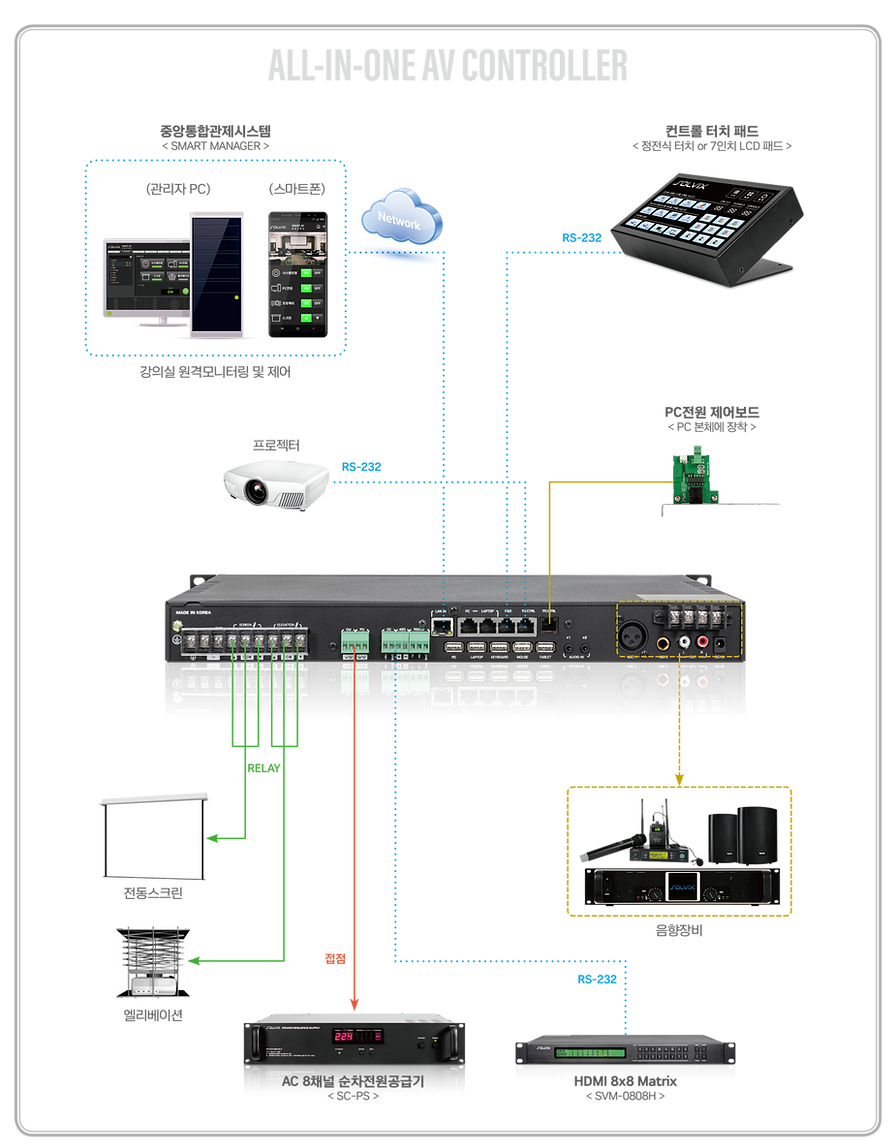

basic configuration
Product specification
model name
SIC-1100 / SIC-1100A
control touchpad
7-inch LCD Touch (selectable capacitive touch control pad)
audio input
3.5mm Stereo Jack x 2
audio output
Stereo RCA L/R x 1
DSP EQ
10Band EQ / Graphic Equalizer, Parametric Equalizer
(Mic 1, 2 individual EQ can be adjusted)
microphone input
Mic1 (Phantom 48V), Mic2 / (each channel Bass, Middle, Treble)
serial port
RS-232 x 2 (RJ-45, Euro Terminal), RS-485 x 1 (Euro Terminal)
relay port
Relay x 1 (Euro Terminal)
EXT. S/W
1Port (Euro Terminal) / EM signal interlocking (blocking audio other than emergency broadcasting in case of fire)
PC control port
1Port (RJ-12) – PC power control board provided as standard
DC power output
DC 5V (Euro Terminal)
powertrain control
AC220V / Electric Screen, Electric Elevation (Up/Stop/Down)
USB hub
PC, Laptop, Tablet, Keyboard, Mouse
LAN hub
In, PC, Laptop
digital amplifier
SIC-1100 : X
SIC-1100A: 60W, 8Ω
Remote control (Option)
Network-based integrated control / remote control / monitoring of each classroom, reservation function
power used
SIC-1100 : DC12V
SIC-1100A : DC24V
Product size/weight
428(W) x 250(D) x 44(H)mm / 1U(19 inch Rack Type) / 2.9Kg
