SIC-5100(A)
-%EC%A0%84%EB%A9%B4.png)
Product Features
Control Pad: 7-inch LCD TOUCH
Connect up to 4 HDMI sources to 4 HDMI displays
Full HDCP compatibility
EDID Expert: Select the optimal EDID setting for high-quality display
High resolution video support – 480p, 720p, 1080p (1920x1080): up to WUXGA (1920x1200)
Seamless Switcher function: No delay time when switching screens
•Matrix function support: It is possible to output the selected input source on a different screen or the same screen
•Multi View possible: 4 input sources can be output in 4 split screen
Built-in DSP (Digital Signal Processor) Chip
Parametric EQ support: Individual audio of Mic 1 and 2 can be perfectly adjusted with Parametric EQ
Microphone audio can be embedded in HDMI output
RTC (Real Time Clock) function – international standard 24-hour display
Emergency broadcast linkage possible in case of fire – EXT.SW
Built-in Giga LAN HUB / Built-in computer power control board
Possibility of interworking with central integrated management program (SMART MANAGER) (Option)
-%ED%9B%84%EB%A9%B4.png)

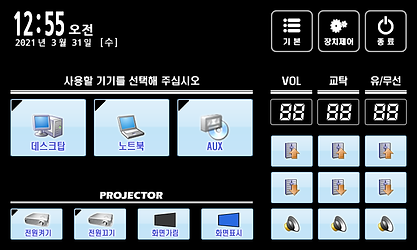

RTC function (LCD touch)
control pad
Control Pad (Basic Optional)
* The control pad can be selected as a tabletop type or a flush type.
-2(7%EC%9D%B8%EC%B9%98).png)
< Tabletop type >
_%EB%A7%A4%EB%A6%BD%ED%98%95.png)
< Wall Mounting >
Control Pad (Advanced) - Optional
basic configuration
-%EB%B8%94%EB%9F%AD%EB%8F%84_.png)
Product specification
model name
SIC-5100
SIC-5100A
control touchpad
7-inch LCD Touch (selectable capacitive touch control pad)
HDMI input
4 x HDMI Type A Female
HDMI output
5 x HDMI Type A Female (x1, Multi View)
video resolution
480p, 720p, 1080i, 1080p (1920x1080); Up to WUXGA (1920 x 1200)
audio input
PC, Laptop(3.5mm Stereo x 2)
audio output
Stereo RCA L/R x 1
DSP EQ
10Band EQ / Graphic Equalizer, Parametric Equalizer
(Mic 1, 2 individual EQ can be adjusted)
microphone input
Mic 1 (Phantom 48V), Mic 2 (each channel Bass, Middle, Treble)
extended control port
RS-232 x 2 (LAN terminal, D-sub 9p), RS-485 x 1, RELAY x 1 (Euro Terminal),
DC 5V (Euro Terminal)
EXT. S/W
1Port (Euro Terminal) / EM signal interlocking (Audio blocking other than emergency broadcasting in case of fire)
PC control port
1Port (RJ-12) – PC power control board provided as standard
manual control switch
Manual control LED S/W x 10 button on the front of the main body (used when the touch control pad is defective)
Projector Control
RS-232 control / 2 units can be controlled
powertrain control
Electric Screen, Electric Elevation (Up/Stop/Down)
USB hub
PC, Laptop, Tablet, Keyboard, Mouse
LAN hub
In, PC, Laptop
RTC function
Real Time Clock / International standard 24-hour application (current time displayed on LCD TOUCH pad)
digital amplifier
SIC-5100 : X
SIC-5100A: 60W, 8Ω
Remote control (Option)
Network-based integrated control / remote control / monitoring of each classroom, reservation function
power used
SIC-5100 : DC12V
SIC-5100A : DC24V
Product size/weight
428(W) x 280(D) x 88(H)mm / 2U(19 inch Rack Type) / 3.8Kg
